CONSTRUCTION: The 500 Classic is made from hot dipped 25 gauge galvanized steel secured to heavy duty 20 gauge pre painted stiles with both toggle locks and waterproof adhesive. Optional textured ABS vinyl-backed 3/4" polystyrene insulation is bonded to each section to provide quiet, energy-efficient operation.
NOMINAL SPECIFICATIONS:
-
Section Joint: Tongue and Groove joint between sections
-
Thickness: 2", all sections have hemmed edges
-
R Value: Insulated models R=4.3
-
Finish: Baked on polyester enamel
-
Colors selection: White, Brown, Almond, Sandstone
-
Bottom weather seal: U-shape loop type vinyl with aluminum retainer
STANDARD WIDTHS:
|
8'-0"
|
9'-0"
|
10'-0"
|
12'-0"
|
14'-0"
|
15'-0"
|
16'-0"
|
18'-0"
|
STANDARD HEIGHTS:
|
7'-0"
|
8'-0"
|
9'-0"
|
10'-0"
|
11'-0"
|
12'-0"
|
14'-0"
|
Sections
|
4-21"
|
3-18", 2-21"
|
6-18"
|
2-18", 4-21"
|
5-21"
|
1-18", 6-21"
|
8-21"
|
OPTIONS:
-
Widths up to 18' in one inch increments, heights up to 14' in three inch increments
-
3/4" ABS vinyl-backed polystyrene insulation
-

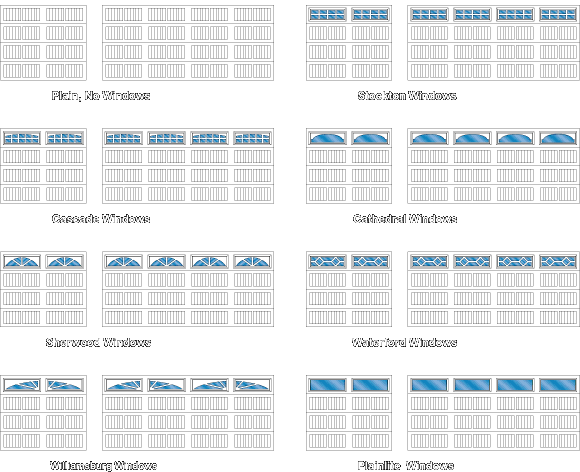

9 Window Designs, see "Design Page"
-
Decorative hardware
-
25,000, 50,000 & 100,000 cycle torsion springs
-
1/8" clear annealed glass standard, clear obscure optional
-
Low clearance, high lift or vertical lift track and hardware also available
HARDWARE: 15" or 12" radius torsion hardware; track is 2" bracket mounted. Quiet long life nylon rollers, non corrosive door fixtures and graduated hinges are standard. U-shaped galvanized struts are supplied with every double car door to keep the door rigid.
AVAILABLE COLORS*:
* The actual color may slightly vary from what you are seeing, depending on the color calibration of your computer monitor.
|
|
|
